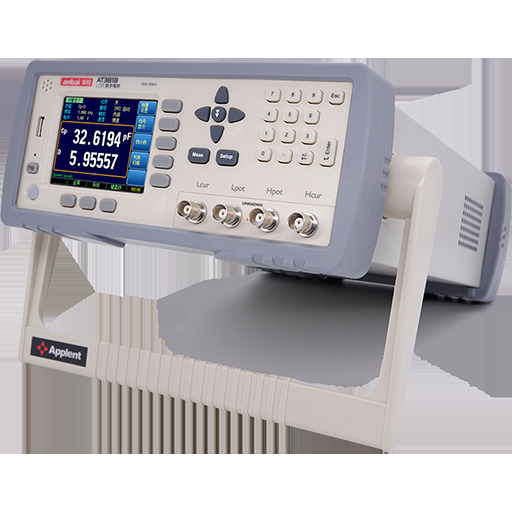

AT3816APrecision LCR Meter

Get a Price/Quote

MOQ : 1 Piece

AT3816APrecision LCR Meter Specification

Accuracy
Basic accuracy 0.05%

Batteries Type
AC Powered (No batteries required)

Resistant Feature
Anti-static, Chemical Resistant Casing

Usage & Applications
Test and measure inductance, capacitance, resistance in components, R&D, and QC labs

Product Type
Precision LCR Meter

Material
High-grade ABS & Metal

Measuring Voltage Range
10mV to 1V

Operating Temperature
0C ~ 40C

Frequency (MHz)
0.05MHz ~ 100kHz (50Hz ~ 100kHz)

Insulation Box
Provided with insulating cover for safety

Protection System
Overload and overvoltage protection built-in

Size
Bench-top

Color
Light Gray with Blue Panel

Dimension (L*W*H)
365mm x 300mm x 105mm

Weight
Approx. 4.2kg

Interface
USB, RS232C

Sorting/Comparator Function
Pass/Fail indication and bin sorting

Safety Standards
Complies to IEC61010-1

Display Type
LCD digital display

Power Supply
100V/120V/220V/240V AC, 47~63Hz

Data Hold/Memory
Supports data hold and statistical analysis

Measurement Parameters
L, C, R, D, Q, ESR, (phase angle)

Measurement Range (LCR)
L: 0.1H ~ 9999H, C: 0.01pF ~ 9999F, R: 0.01 ~ 99.99M

Test Signal Level
Selectable 10mV, 100mV, 1V (typical)

Zeroing
Automatic open/short correction

AT3816APrecision LCR Meter Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash in Advance (CID)

Supply Ability
100 Pieces Per Month

Delivery Time
2-5 Days

Main Export Market(s)
Asia

About AT3816APrecision LCR Meter

Capitalise on unmatched precision with the AT3816A Precision LCR Meter, a brilliant solution for component analysis in R&D and QC labs. Spotlighting a lavish LCD digital display, this bench-top instrument measures L, C, R, D, Q, ESR, and phase angle over a lofty frequency range. Reduced error rates are ensured by automatic open/short correction and pass/fail sorting capabilities. Featuring a high-grade ABS & metal build, anti-static and chemical resistance, and overvoltage protection-this meter is tailored for rigorous, high-demand environments. Exported worldwide, order now and refine your measurements with confidence.

Application Scope and Distinctive Features

The AT3816A Precision LCR Meter is indispensable in electronics manufacturing, component testing, research and development centers, as well as quality control laboratories. It delivers comprehensive inductance, capacitance, and resistance measurements, and is equipped with advanced features like statistical data analysis, pass/fail indication, robust anti-static casing, and overload protections. Its versatile signal levels and brilliant data visibility make it invaluable in both commercial and industrial settings, ensuring elevated productivity and process reliability.

Sample Availability, Packaging, and Delivery Options

Samples of the AT3816A LCR Meter are available upon request, ensuring you can evaluate its performance firsthand before procurement. Each unit is securely packaged to safeguard its integrity during freight, and insulation covers are provided. With ready stock and efficient order completion processes, we guarantee swift delivery times for both small quantities and bulk purchases. Partner with us for smooth logistics and dependable supply, directly from the manufacturer and exporter.

FAQ's of AT3816APrecision LCR Meter:

Q: How does the AT3816A Precision LCR Meter benefit quality control processes?

A: This device delivers high-accuracy measurements for L, C, and R parameters, supports automatic correction, and features pass/fail sorting, enhancing efficiency and reducing inspection errors in production and QC labs.

Q: What measurement ranges and frequencies does this meter support?

A: The AT3816A covers L: 0.1H~9999H, C: 0.01pF~9999F, R: 0.01~99.99M, and operates across frequencies from 50Hz to 100kHz, accommodating a wide variety of test requirements.

Q: Where can the AT3816A LCR Meter be typically used?

A: This instrument is ideal for research and development centers, component manufacturing, electronics assembly, and educational laboratories, making it suitable wherever precise LCR testing is necessary.

Q: What is the process to order and receive samples of the AT3816A LCR Meter?

A: To obtain a sample, simply contact our sales team. Samples are available for evaluation, stock is ready, and packaging ensures product safety during freight. Delivery time is minimized to ensure prompt receipt by the customer.

Q: What protective and safety features are included with this meter?

A: The AT3816A includes an insulating cover, overload and overvoltage protection, anti-static and chemical-resistant casing, and complies with IEC61010-1 safety standards, ensuring operational safety and instrument longevity.
