AT2816BLCR Meter

Get a Price/Quote

Product Details:

Usage & Applications Measuring Inductance, Capacitance, and Resistance of Electronic Components
Resistant Feature Shock Resistant
Batteries Type AC Adapter (No Internal Battery)
Accuracy (0.2%+2)
Product Type LCR Meter
Material Plastic Body
Measuring Voltage Range 0.6V, 1.0V, 1.5V (AC Signal)
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

AT2816BLCR Meter Price And Quantity

Minimum Order Quantity 1 Piece

AT2816BLCR Meter Product Specifications

Operating Temperature 0C to 40C
Frequency (MHz) 100Hz, 120Hz, 1kHz, 10kHz, 100kHz (Test Frequency)
Color Grey
Weight Approx. 1.5 kg
Accuracy (0.2%+2)
Usage & Applications Measuring Inductance, Capacitance, and Resistance of Electronic Components
Size Portable
Resistant Feature Shock Resistant
Measuring Voltage Range 0.6V, 1.0V, 1.5V (AC Signal)
Batteries Type AC Adapter (No Internal Battery)
Protection System Overload Protection
Material Plastic Body
Dimension (L*W*H) 215 x 205 x 85 mm
Insulation Box Yes
Product Type LCR Meter

Sorting Function 10 Bins
Power Supply AC 220V 10%, 50Hz
Interface RS232/USB Communication (Optional)
Test Signal Level 0.6V, 1.0V, 1.5V select
Data Hold Yes
Test Speed Fast, Medium, Slow selectable
Measurement Range L: 0.01 H - 99.99 H, C: 0.01 pF - 99.99 mF, R: 0.01 - 99.99 M
Accessories Test Leads, User Manual, Power Cord
Comparator Function Included
Display Type 412 Digit LCD Display

AT2816BLCR Meter Trade Information

Payment Terms Cash in Advance (CID)
Supply Ability 100 Piece Per Month
Delivery Time 2-5 Days
Main Export Market(s) Asia

Product Description

Grab the magnificent AT2816BLCR Meter and purchase flawless measurement performance for your electronic needs. Celebrated for its savings in time and accuracy, this meter features a stellar 412 digit LCD display, selectable test signal levels (0.6V, 1.0V, 1.5V), and a broad measurement range for inductance, capacitance, and resistance. With optional RS232/USB interface, overload protection, sorting function, and AC 220V power support, this shock-resistant, portable device is ideal for rapid, reliable results, making it a must-own solution for manufacturers, exporters, and professionals in electronic component testing.

Why Choose the AT2816BLCR Meter?

The AT2816BLCR Meter provides a competitive edge through its fast, accurate test speeds-ideal for production lines and R&D laboratories. Widely used by electronic manufacturers, quality control engineers, and component exporters, its robust construction and celebrated shock-resistant feature make it reliable in demanding environments. Bonus advantages include a data hold feature, multi-bin sorting, overload protection, and an easy-to-read 412 digit LCD display, all enclosed in a sleek, portable design for daily excellence.

Export Markets, Domestic Reach, and Supply Readiness

Celebrated internationally, the AT2816BLCR Meter is handed over to valued clients across Asia, Europe, and North America. Its competitive asking price and reliable supply make it a favored option in both major export destinations and the expansive domestic mar. With a robust supply ability, timely shipments, and strong regional presence, we fulfill bulk orders with ease for manufacturers, wholesalers, and independent retailers seeking consistent quality and service.

FAQ's of AT2816BLCR Meter:

Q: How do I operate the AT2816BLCR Meter for the most accurate results?

A: Begin by connecting the provided test leads to your component, power the unit with the included AC adapter, and select the desired measurement function and test speed. Consult the user manual for step-by-step guidance tailored to each application.

Q: What components can be measured using the AT2816BLCR Meter?

A: The AT2816BLCR Meter is designed to measure inductance, capacitance, and resistance of electronic components across extensive ranges, accommodating a wide variety of testing requirements.

Q: What benefits does the comparator and sorting function offer?

A: The included comparator function ensures measured components meet set standards easily. The 10-bin sorting system enables efficient categorization during mass testing, streamlining quality control and batch processing.

Q: Where is the AT2816BLCR Meter widely used?

A: This versatile meter is celebrated among electronic manufacturers, exporters, suppliers, R&D centers, and quality control labs for its reliability in testing, classification, and routine verification tasks.

Q: When is the optimal time to use the data hold feature?

A: Use the data hold function during live testing when you need to freeze a measuring value for closer inspection or to report readings without interruption from fluctuating signals.

Q: What process should be followed for safe operation and protection?

A: Always use the insulation box, ensure connections are secure, and operate the device within the recommended voltage and temperature ranges. The AT2816BLCR Meter's overload protection further secures both user and device during rigorous testing processes.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Digital LCR Meter' category

AT2811LCR Meter Minimum Order Quantity : 1 Accuracy : Basic accuracy: 0.1% to 0.4% (variable by range and parameter) Color : White Weight : Approx. 500g Operating Temperature : 0C to 40C Frequency (MHz) : Test Frequencies: 100Hz, 120Hz, 1kHz, 10kHz, 100kHz Measuring Voltage Range : Test signal level: 0.5Vrms and 0.1Vrms Batteries Type : 9V Battery Protection System : Input Overload Protection Size : Handheld Resistant Feature : Shockresistant housing Usage & Applications : Testing and measuring inductance, capacitance and resistance in laboratories and production lines Material : ABS, Electronic Components Product Type : Digital LCR Meter Dimension (L*W*H) : Approx. 230 x 110 x 40 mm Insulation Box : ABS Plastic Enclosure

Send Inquiry

AT2818Precision LCR Meter Minimum Order Quantity : 1 Accuracy : Basic accuracy 0.1% Color : Light Grey Weight : Approx. 3.5kg Operating Temperature : 0C40C Frequency (MHz) : 10Hz100kHz (selectable) Measuring Voltage Range : 10mV1V (adjustable) Batteries Type : AC powered (No batteries required) Protection System : Builtin overload and short circuit protections Size : Standard Laboratory Bench Size Resistant Feature : ESDresistant, antiinterference design Usage & Applications : Measurement of L, C, R parameters in laboratory and production environments Material : ABS Body, Electronic Components Product Type : Precision LCR Meter Dimension (L*W*H) : 365mm x 280mm x 100mm Insulation Box : Yes

Send Inquiry

AT2817Precision LCR Meter Minimum Order Quantity : 1 Accuracy : Basic accuracy 0.05% Color : Grey Weight : Approx. 4.5kg Operating Temperature : 0C to 40C Frequency (MHz) : 10Hz to 100kHz (0.01100kHz) Measuring Voltage Range : 0.1V, 0.3V, 1V (RMS) Batteries Type : Mains Operated Protection System : Full Protection Circuitry Size : Standard Laboratory Size Resistant Feature : EMI Shielded Usage & Applications : Capacitance, Inductance & Resistance Measurement in Laboratories and Production Material : Industrial Grade Components Product Type : Precision LCR Meter Dimension (L*W*H) : 350mm 320mm 100mm Insulation Box : Yes

Send Inquiry

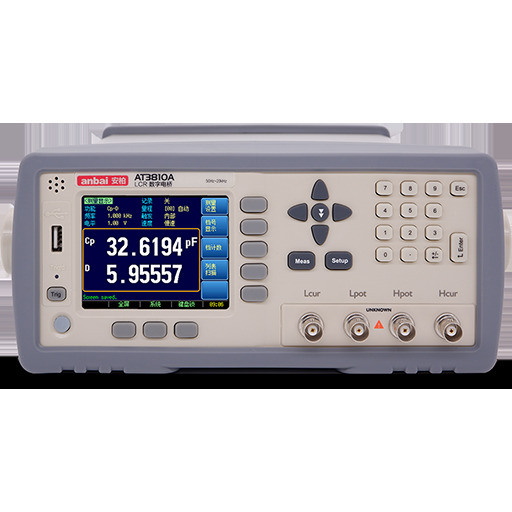

AT3810APrecision LCR Meter Minimum Order Quantity : 1 Accuracy : Basic accuracy: 0.1% Color : White/Blue Weight : Approx. 4.2kg Operating Temperature : 0C to 40C Frequency (MHz) : 0.1 to 100kHz (0.1MHz) Measuring Voltage Range : 0.1V, 0.3V, 1V Batteries Type : AC powered; no batteries required Protection System : Builtin protection circuit for overload and shortcircuit Size : Standard Benchtop Resistant Feature : Shockresistant enclosure Usage & Applications : Component impedance measurement, quality control, lab analysis Material : Industrialgrade ABS and metal housing Product Type : Precision LCR Meter Dimension (L*W*H) : 355mm 340mm 110mm Insulation Box : Yes
