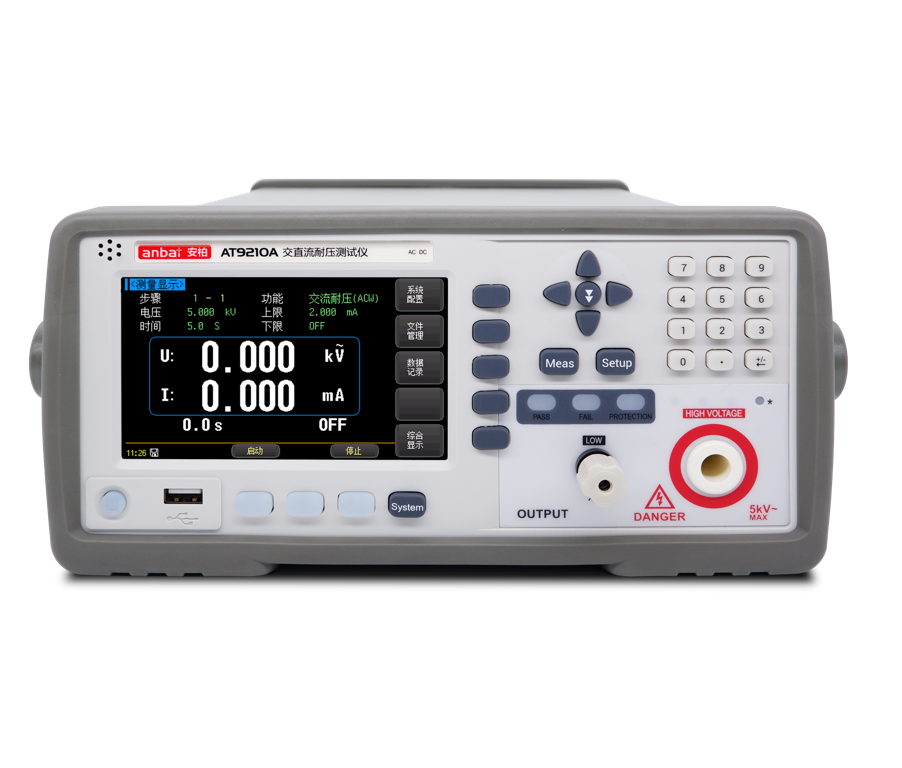

AT9210A Hipot Tester

Price 578.0 USD ($)/ Unit

Get a Price/Quote

MOQ : 1 Unit

AT9210A Hipot Tester Specification

Resistant Feature
Shock Resistant

Usage & Applications
Electrical Safety Testing, Laboratory Use, Industrial Applications

Pressure
Up to 5 kV

Accuracy
(2% of reading + 2 digits)

Product Type
Hipot Tester

Material
High-Quality Plastic and Metal

Measuring Voltage Range
0-5 kV AC/DC

Operating Temperature
0C to 40C

Frequency (MHz)
50/60 Hz

Insulation Box
Available

Protection System
Over-Current, Short-Circuit Protection

Size
Standard

Color
Gray White

Dimension (L*W*H)
320 mm 300 mm 150 mm

Weight
6 kg

Display
Digital Display

Timer Range
0-99 s

Test Mode
AC/DC/IR

Interface
RS232/USB

Safety Standards
IEC 61010-1, GB4706.1

Input Power
AC 220V 10%, 50/60Hz

Cooling Method
Fan Cooling

Output Current
0-2 mA

Alarm Function
Audio/Visual Alarm

Relative Humidity
<75% RH (No Condensation)

AT9210A Hipot Tester Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash in Advance (CID)

Supply Ability
50 Units Per Month

Delivery Time
2-5 Days

Main Export Market(s)
Asia

About AT9210A Hipot Tester

Introducing the new release-AT9210A Hipot Tester, a spectacular addition to your testing toolkit! Get it now at a special sale price and experience astounding performance with its digital display, remarkable test modes (AC/DC/IR), and output current up to 2 mA. Designed for precision, it boasts an audio/visual alarm, RS232/USB interfaces, and compliance with IEC 61010-1, delivering safety and reliability. Shock-resistant, fan-cooled, and constructed from durable high-quality plastic and metal, it ensures safety testing up to 5 kV for laboratories, industrial environments, and electrical product manufacturers. Don't miss this remarkable solution from an experienced exporter, manufacturer, and supplier in China!

Versatile Applications, Reliable Advantages

The AT9210A Hipot Tester is suitable for laboratory use, industrial safety inspections, and all forms of electrical safety testing. Its advantage lies in its accuracy (2% of reading + 2 digits) and comprehensive protection system, making it ideal for continuous and high-demand operations. Designed for desktop use, it accommodates standard workloads and ensures consistent reliability even in varied environmental conditions, making it perfect for manufacturers, electrical engineers, and quality assurance specialists.

Preferred Payment, Export Markets, and Trusted Certification

Every AT9210A Hipot Tester is packaged securely to ensure safe delivery. Payment terms are designed for flexibility, including T/T and L/C. Shipped globally, our main export markets include North America, Europe, and Asia. Each tester comes with certifications for IEC 61010-1 and GB4706.1 compliance, ensuring every unit meets international quality standards before it's delivered to your facility.

FAQ's of AT9210AHipot Tester:

Q: How does the AT9210A Hipot Tester ensure operator safety during testing?

A: The AT9210A Hipot Tester is equipped with both audio and visual alarms, over-current, and short-circuit protection systems, significantly reducing risk and alerting users instantly if any unsafe conditions are detected during operation.

Q: What types of electrical tests can the AT9210A Hipot Tester perform?

A: This model supports AC, DC, and insulation resistance (IR) testing, providing broad compatibility for high-voltage proof testing across various industrial and laboratory applications.

Q: When should I use the insulation box with the AT9210A Hipot Tester?

A: The insulation box is recommended whenever you need to isolate the DUT (device under test) for extra safety, especially during high-voltage tests or in environments where additional containment is necessary.

Q: What are the benefits of the digital display on the AT9210A Hipot Tester?

A: The digital display allows for precise readings, enhanced visibility in diverse lighting conditions, and simplifies monitoring of voltage, current, and test duration, improving overall user experience and test accuracy.

Q: How is the AT9210A Hipot Tester shipped and packaged?

A: Each tester is carefully packaged in durable materials to prevent shipping damage, ensuring it arrives securely. Delivery options can be tailored to meet specific logistical needs, with global shipping available upon order confirmation.
