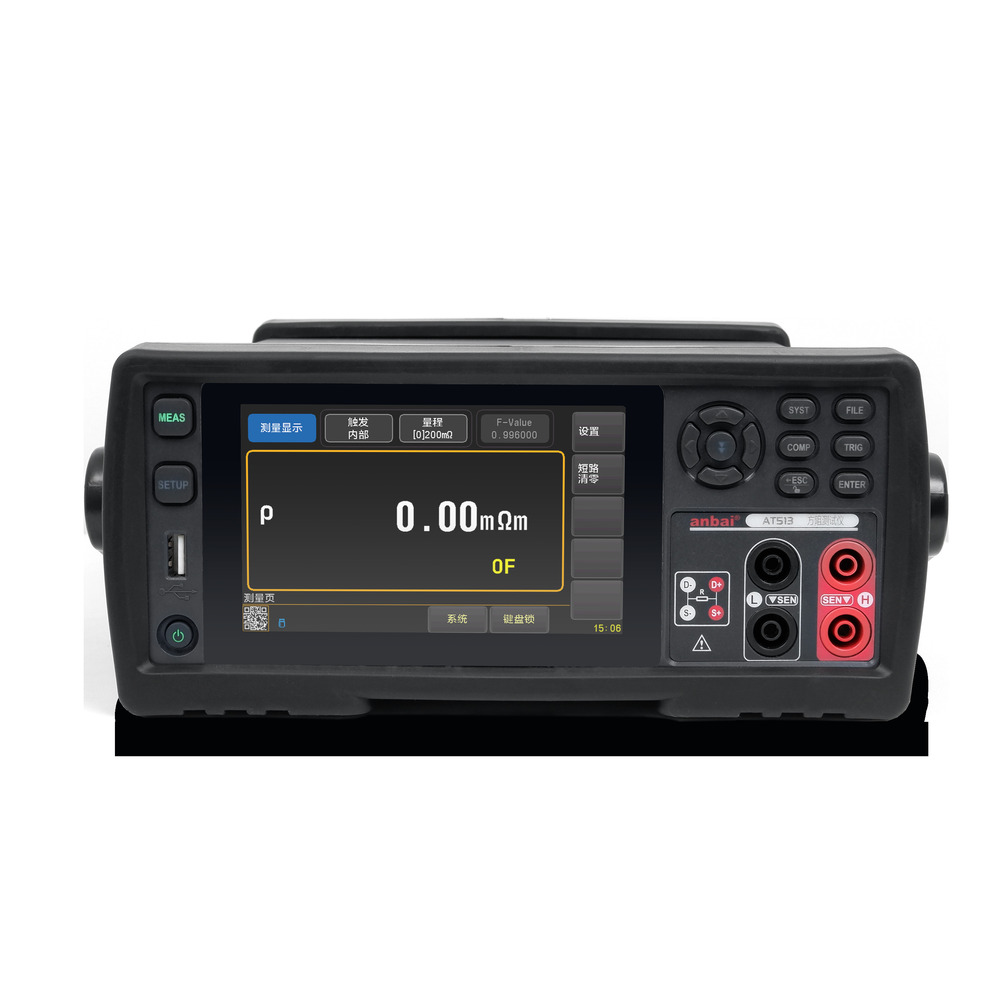

AT513Sheet Resistivity Meter

Get a Price/Quote

MOQ : 1 Piece

AT513Sheet Resistivity Meter Specification

Pressure
Standard Pressure Probe Operation

Accuracy
2% of reading

Resistant Feature
Corrosion Resistant, Anti-Static

Batteries Type
Rechargeable NiMH/External Power Supply

Usage & Applications
Measurement of volume and surface resistivity of insulating materials, plastics, films, paints, rubber, papers, etc.

Product Type
Sheet Resistivity Meter

Material
High-Grade Plastic and Electronic Components

Measuring Voltage Range
10V, 100V, 500V, 1000V

Operating Temperature
0C to 40C

Frequency (MHz)
50/60 Hz

Insulation Box
ABS Insulated Enclosure

Protection System
Over-voltage and Over-current Protection

Size
Standard Laboratory Size

Color
Light Blue and White

Dimension (L*W*H)
250 mm x 190 mm x 90 mm

Weight
2.5 kg

Power Supply
AC 220V 10%, 50/60 Hz / Internal Battery

Safety Feature
Automatic Discharge after Measurement

Calibration
Factory Calibrated with Certificate

Measurement Range
10^4 to 10^12 / (ohms/sq)

Data Output
RS232 Communication Port

Display Type
LCD Digital Display

Environmental Humidity
80% RH (non-condensing)

Compliance Standard
ASTM D 257, IEC 60093

Sampling Time
Approx. 1 second

Standard Accessories
Electrode Probe Set, Measuring Leads, Carrying Case, Charger

AT513Sheet Resistivity Meter Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash in Advance (CID)

Supply Ability
100 Pieces Per Month

Delivery Time
2-5 Days

Main Export Market(s)
Asia

About AT513Sheet Resistivity Meter

Order Today for the AT513Sheet Resistivity Meter, the Supreme solution for precise measurement needs. As a Best-seller and the Dominant choice in laboratories, this advanced device offers a Measurement Range from 10^4 to 10^12 ohms/sq and a speedy 1-second sampling time. Its LCD Digital Display and user-friendly RS232 Data Output ensure seamless integration. Backed by Factory Calibration with Certificate, it complies with ASTM D 257 and IEC 60093 standards and comes complete with an electrode probe set, carrying case, and automatic discharge safety. This Clearance-rated, corrosion-resistant meter is ideal for volume and surface resistivity testing in plastics, films, and more!

Competitive Advantages & Applications

The AT513Sheet Resistivity Meter leads the market with its outstanding accuracy, wide measurement range, and robust durability. Competitive advantages include rapid sampling, superior anti-static, and corrosion-resistant design, along with over-voltage and over-current protection. It is primarily used for measuring the volume and surface resistivity of insulating materials such as plastics, films, paints, rubber, and paper, making it invaluable in scientific research, quality control, and production environments.

Sample Policy, Payment Terms & Export Markets

Samples of the AT513Sheet Resistivity Meter are dispatched promptly upon request at a competitive rate. Payments are securely handled, and flexible terms are provided to accommodate different buyers' needs. Products are delivered efficiently to main export markets, including Asia, Europe, and North America. As a leading exporter, manufacturer, and supplier in China, we ensure each item is handled with care for timely delivery to international clients.

FAQ's of AT513Sheet Resistivity Meter:

Q: How does the AT513Sheet Resistivity Meter ensure accurate measurements?

A: The AT513Sheet Resistivity Meter uses factory calibration with a certificate and state-of-the-art electronics to provide high accuracy of 2% per reading, along with rapid sampling and advanced safety features for consistent results.

Q: What materials can be tested using the AT513Sheet Resistivity Meter?

A: This meter is suitable for measuring the resistivity of insulating materials such as plastics, films, paints, rubbers, and papers, making it versatile for various laboratory and industrial applications.

Q: Where can the AT513Sheet Resistivity Meter be used?

A: It can be used in quality control labs, research centers, production facilities, and environments focusing on the assessment of insulating properties and materials analysis.

Q: What is the process for ordering and receiving the AT513Sheet Resistivity Meter?

A: Order today through our online platform or authorized distributors. Upon receipt of payment, your unit is dispatched and delivered efficiently, complete with all standard accessories and calibration certifications.

Q: What are the main benefits of using this resistivity meter?

A: Key benefits include a wide measurement range, rapid one-second sampling, built-in safety and protection systems, automatic discharge after measurement, and compliance with leading international standards.

Q: How is data output managed with this device?

A: Data output is streamlined through the RS232 communication port, allowing easy transfer of measurement results to computers or other data logging systems.
